Single Phase Two Wires Din Rail Energy Meter DRS-202D

Model: DRS-202D (1P2W)
Name: Single Phase Two Wires Din Rail Energy Meter DRS-202D
Introduction: single phase,4 modules,72mm,100A direct or CT 1.5(6)A indirect,50~60Hz,230V,LCD display, DIN rail.

l The DRS-202D is single phase kWh meters with a LCD display in a 4 modules (72mm) casing, ensuring a high accuracy class (Class1), a very low starting current which makes it exceptionally suited for photovoltaic energy systems and general use.

l Excellent long term stability which is designed for DIN, IEN and EN standards and 5 years of warranty.

l MID B&D approval which ensures the meter is produced to the highest European and International standards and the meter legally suited for business and invoicing purposes.

l The meter is available in several different versions: with or without backlight and brake, with 1600，3200 or 128000 SO output.

l For connection rate up to 100A. or connection with CT 1.5(6)A

Accuracy Class	1
Reference Voltage ( U_n)	110/120/220/230/240V AC
Operating Voltage	0.7-1.3 U_n
Impulse Voltage	6kV 1.2μs waveform
Rated Current (I_b)	1.5/5/10 A
Maximum Rated Current (I_max)	6/60/100 A
Operating Current Range	0.4% I_b~ I_max
Operating Frequency Range	50Hz± 10%
Internal Power Consumption	<2W/10VA
Operating Humidity range	<75%
Storage Humidity range	<95%
Operating Temperature range	-10º C ~+50º C
Storage Temperature range	-30º C - +70º C

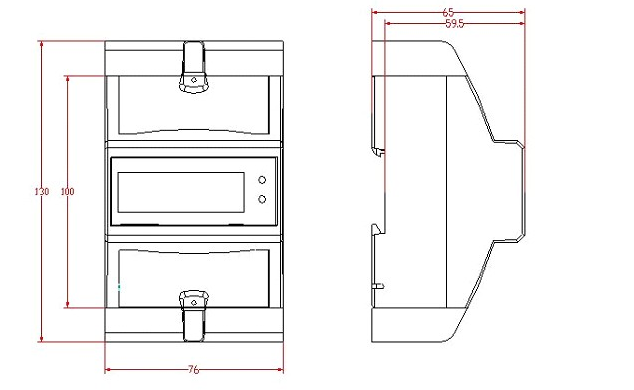

Overall dimensions(mm)	130×76×65
Weight(kg)	about 0.4kg (net)
Display	LCD
