Three Phase Four Wires Din Rail Energy Meter With MODBUS Protocol DRT-301C
Three Phase Four Wires Din Rail Energy Meter With MODBUS Protocol DRT-301C
Name: Three Phase Four Wires Din Rail Energy Meter With MODBUS Protocol DRT-301C

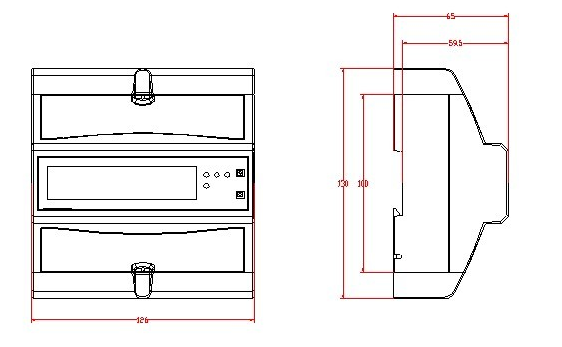

Introduction: Three phase,7 modules,126mm,100A direct or CT 1.5(6)A indirect,50~60Hz, 230/400V AC (3~),LCD display, DIN rail, Far Infrared and RS485 communication, CT Changing-Ratio fully programmable.
l The DRT-301C is three phase kWh meters with a LCD display in a 7 modules (126mm) casing, ensuring a high accuracy class (Class1), a very low starting current which makes it exceptionally suited for photovoltaic energy systems and general use.
l Excellent long term stability which is designed for DIN, IEN and EN standards and 5 years of warranty.
l MID B&D approval which ensures the meter is produced to the highest European and International standards and the meter legally suited for business and invoicing purposes.

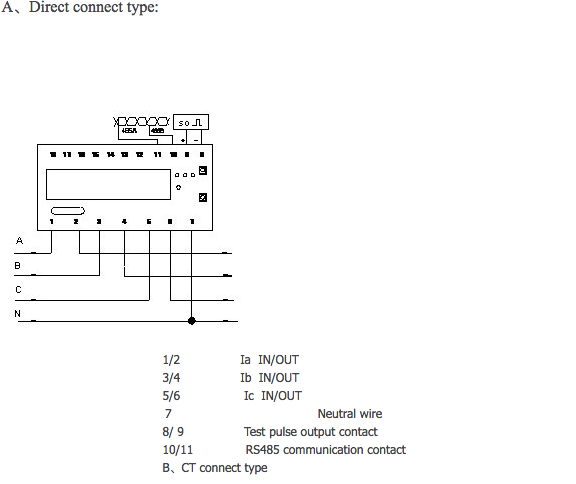

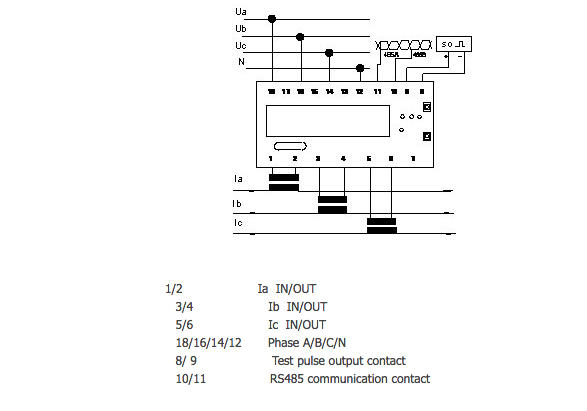

l For connection rate up to 100A. or connection with CT 1.5(6)A; 27 CT Changing-Ratios to choose.
l Far Infrared and RS485 communication; With communication port comply to MODBUS RTU communication protocol.
l Communication baud rate can be set1200(default),2400,4800,9600,19200(option).
