Small size gas meter

PRODUCT > Residential Gas meter > Small size gas meter

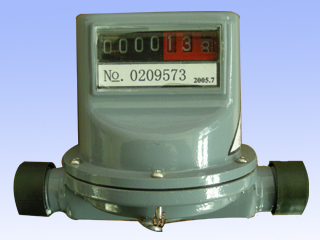

Small size gas meter

    • 1
Model: FY-MQB 04 J1.6
Name: Small size gas meter
Introduction: Small size Gas meter



ITEM
UNIT
MODEL
FY-MQB 04 J1.6
Shell Material

Aluminium
Nominal Flow Rate
m3  /h
1.6
Max Flow Rate
m3  /h
2.0
Min Flow Rate
m3  /h
0.016
Total Pressure Loss
Pa
≤200
Operating pressure range
kPa
0.5~50
Basic Inaccuracy
Qmin≤Q< 0.1 Qmax
±3%
0.1Qmax≤Q≤ Qmax
±1.5%
Min Reading
dm³
0.2
Max Reading
m³
99999.999
Working Temperature
℃
-10~+40
Storage temperature
℃
-20~+50
Service Life
years
10
Thread of inlet & outlet

M30×2
Connection thread

G 1/2
Weight
kg
 380
Size(L*W*H)
cm
12.6*8.5*9
