Three Phase Four Wires Din Rail Energy Meter With Multi-tariff DRT-301M

Model: DRT-301M (3P4W, RS485& Far infrared with multi-tariff)
Name: Three Phase Four Wires Din Rail Energy Meter With Multi-tariff DRT-301M

l The DRT-301M is three phase kWh meters with a LCD display in a 7 modules (126mm) casing, ensuring a high accuracy class (Class1), a very low starting current which makes it exceptionally suited for photovoltaic energy systems and general use.

l Excellent long term stability which is designed for DIN, IEN and EN standards and 5 years of warranty.

l MID B&D approval which ensures the meter is produced to the highest European and International standards and the meter legally suited for business and invoicing purposes.

l Far Infrared and RS485 communication; With communication port comply to Modbus RTU &DL/T645 communication protocol option; Communication baud rate can be set 1200(default),2400,4800,9600,19200(option).

l It can measure and monitor all three phase at the same time, including active power, reactive power, max. demand, power factor, voltage, current, frequency, instantaneous power.

l Multi-tariff,4 TOU rates,10 time segments.

Meter Type	DRT-301M
Accuracy Class	Voltage, LN & LL (Phase1,2,3)	±0.2%
	Amps (Phase 1,2,3)	±0.2%
	PF (Phase 1,2,3 &Σ)	±0.2%
	Active power (Phase 1,2,3&Σ)	±0.5%
	Reactive power (Phase 1,2,3&Σ)	±0.5%
	Apparent power (Phase 1,2,3&Σ)	±0.5%
	Frequency	±0.2%
	Active energy& Demand (Σ)	±1%
Reference Voltage ( U_n)	230/400V AC (3~)
Operating Voltage	161/279 – 300/520V AC (3~)
Impulse Voltage	6Kv 1.2Μs waveform
Battery Voltage	3.6V DC, ≥1.2Ah
Rated Current (I_b)	1.5A/10A
Maximum Rated Current (I_max)	6A/100A
Operating Current Range	0.4% I_b~ I_max
Operating Frequency Range	50~60Hz± 10%
Internal Power Consumption	<2W/10VA
Test output flash rate (PULSE LED)	1600imp/kWh(CT type)
	400imp/kWh (Directly connect)
Test pulse output rate (pins 8 & 9)	1600imp/kWh(CT type)
	400imp/kWh (Directly connect)
Consumption indicator (RED LED)	Flashing at load running
Power supply indicator (Phase A,B & C LED)	Meter is connected and A/B/C voltage power on
Communication indicator(GREEN LDE)	Flashing at communication running
Protocol	MODBUS RTU
Communication	Far Infrared and RS485
Protocol	MODBUS RTU & DL/T645 option
Clock accuracy	≤0.5S (every 24 hours)
Tariff number	4
Time segments	10
Demand cycle	5/10/15/30/60 option
Data save	The data can be stored more than 20 years
Operating Humidity range	<75%
Storage Humidity range	<95%
Operating Temperature range	-10º C ~+50º C
Storage Temperature range	-30º C - +70º C

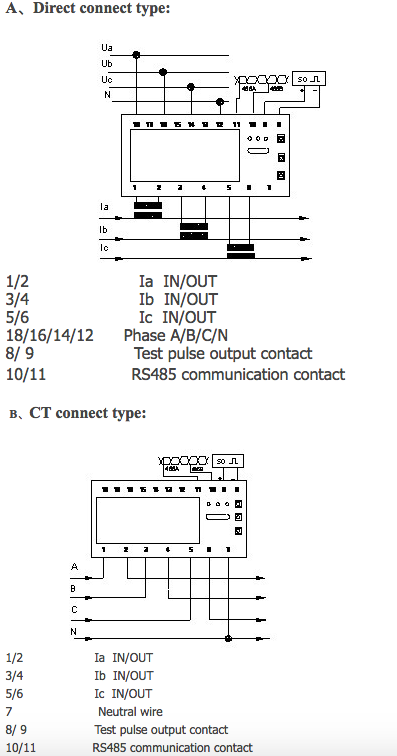

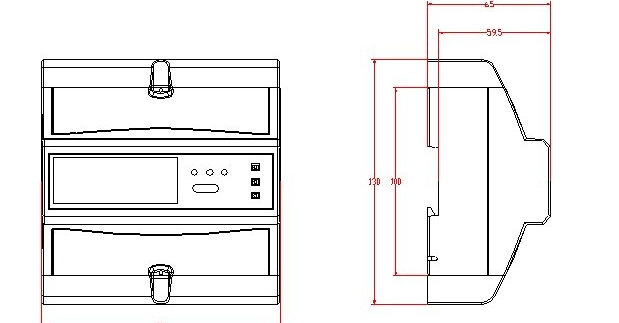

Overall dimensions(mm)	130×126×65
Weight(kg)	about 0.7kg (net)
Display	LCD
Compliant With	IEC62053-21: 2003; EN61036;MID; EMC and LVD; EN50470-3;EN62053-21
IP Protection	IP51
Protective class	Ⅱ
