Intelligent Power Meter PM 832

l         Measuring  function: three phase current, voltage, active power , reactive power,  apparent power, power factor, frequency, active electricity calculation  (with direction),reactive electricity calculation.

l         MODBUS-RTU communication protocol.

l         RS-485 interface,1200-115200bps.

1). Power supply:

65～265V AC/DC

Power consumption: 2W

2).Switch value input and output

2 loops DI

Dry contact

With auxiliary detecting power supply

2 loops DO/Relay output

3).Usage

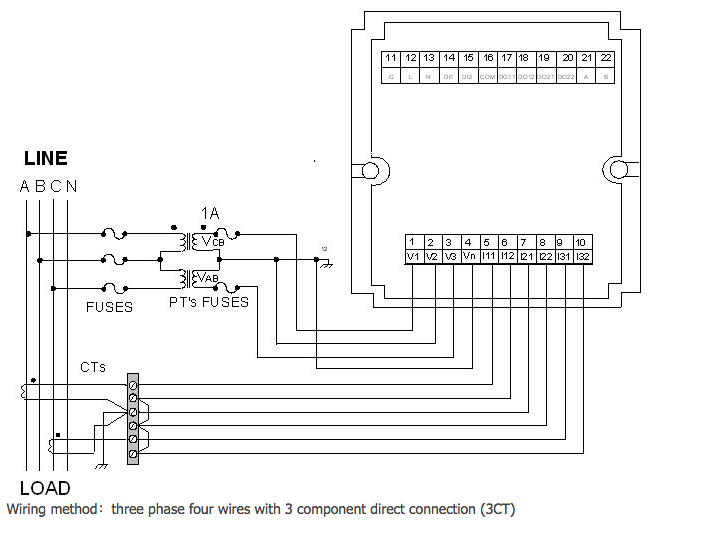

Low voltage line

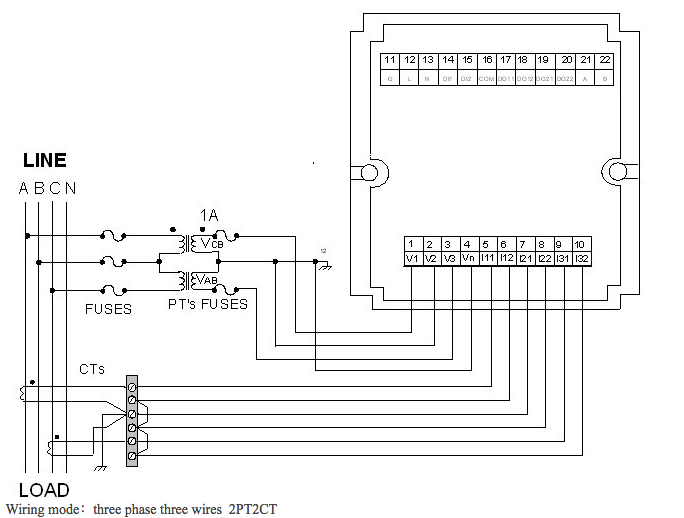

High voltage line with PT

4).Display

Highly bright LED display

Display the three phase measuring value

Display the I/O status

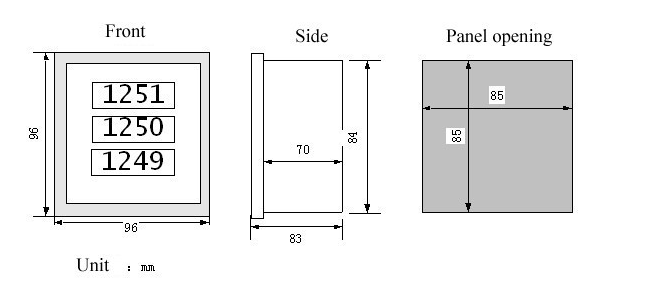

Dimension: 96X96mm

5).Communication

MODBUS-RTU communication protocol

RS-485 interface,1200-115200bps

6).Standard compliance

IEC 62052-11;IEC62053-21;EN 50470-1;EN 50470-3.
